Suction Diffuser SERIES 731-D

• Allows piping assembly at a 90° angle from the pump, saving valuable space in the mechanical room while minimizing cavitation
• Available flanged connections: ANSI Class 150, Australian Standard Table E, PN10/16, GB, and JIS 10K
• Sizes from 3 – 12" | DN80 – DN300. Pressures up to 300 psi | 2068 kPa | 21 bar

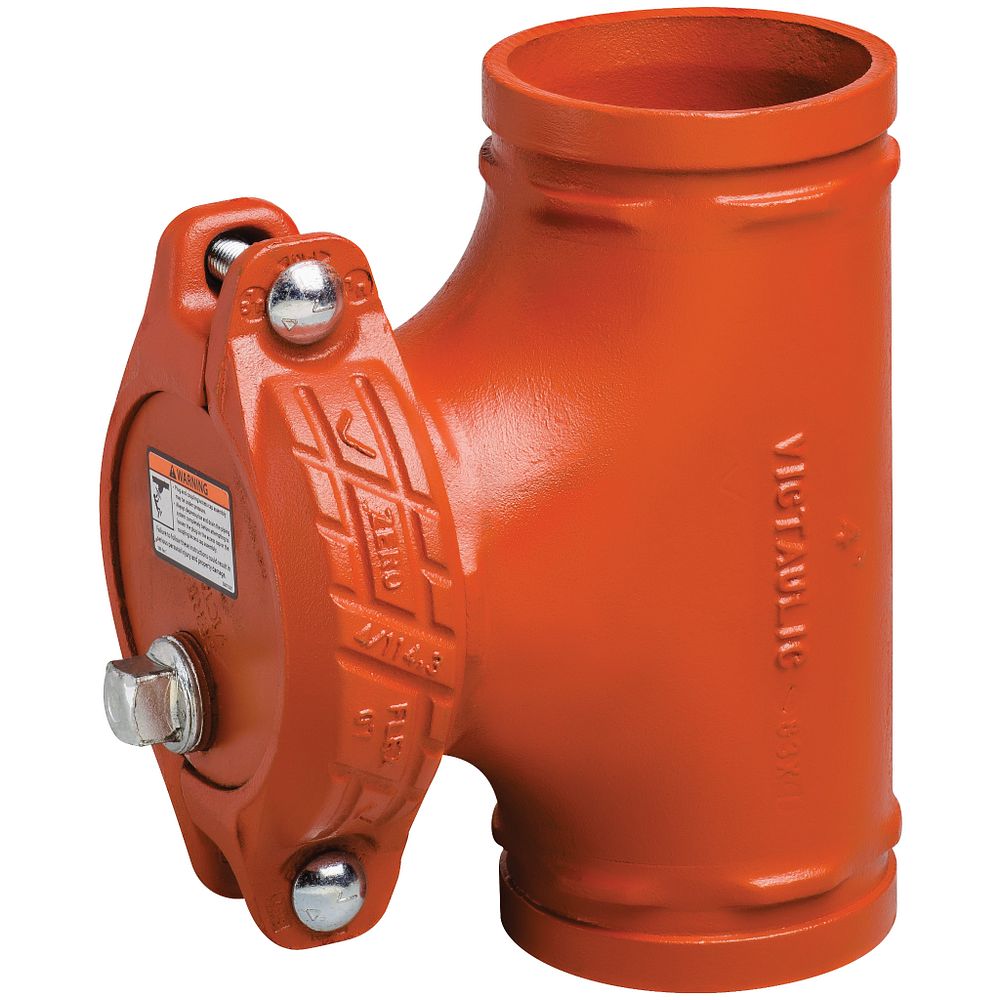

Vic-Strainer Tee Type SERIES 730

• Lighter than flanged Y-type strainers and provides straight-through flow for lower pressure drop
• Sizes from 1½ – 12" | DN40 – DN300
• Pressures up to 750 psi | 5171 kPa | 52 bar. For AGS sizes 14 – 24" | DN350 – DN600

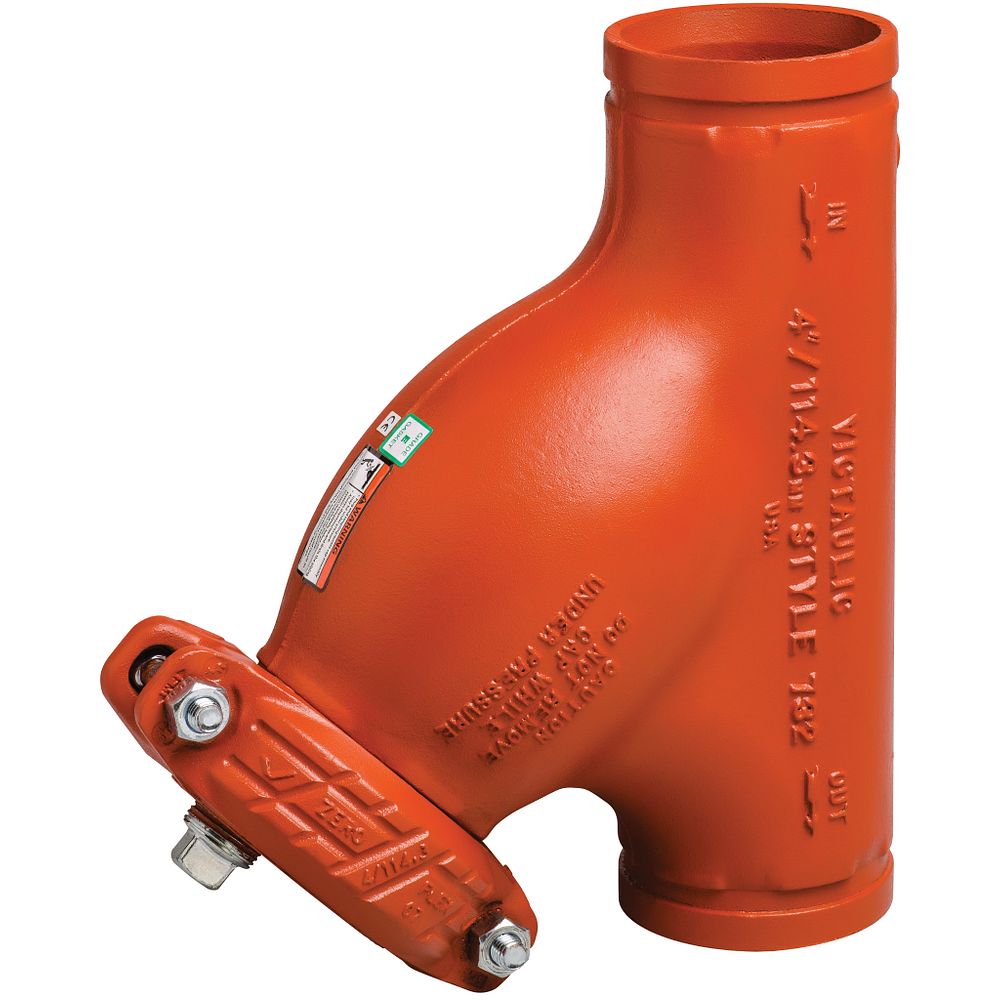

Vic-Strainer Wye Type SERIES 732

• Provides straight-through flow for lower pressure drop
• Sizes from 2 – 12" | DN50 – DN300
• Pressures up to 300 psi | 2068 kPa | 21 bar. Available in limited sizes for air handling units
