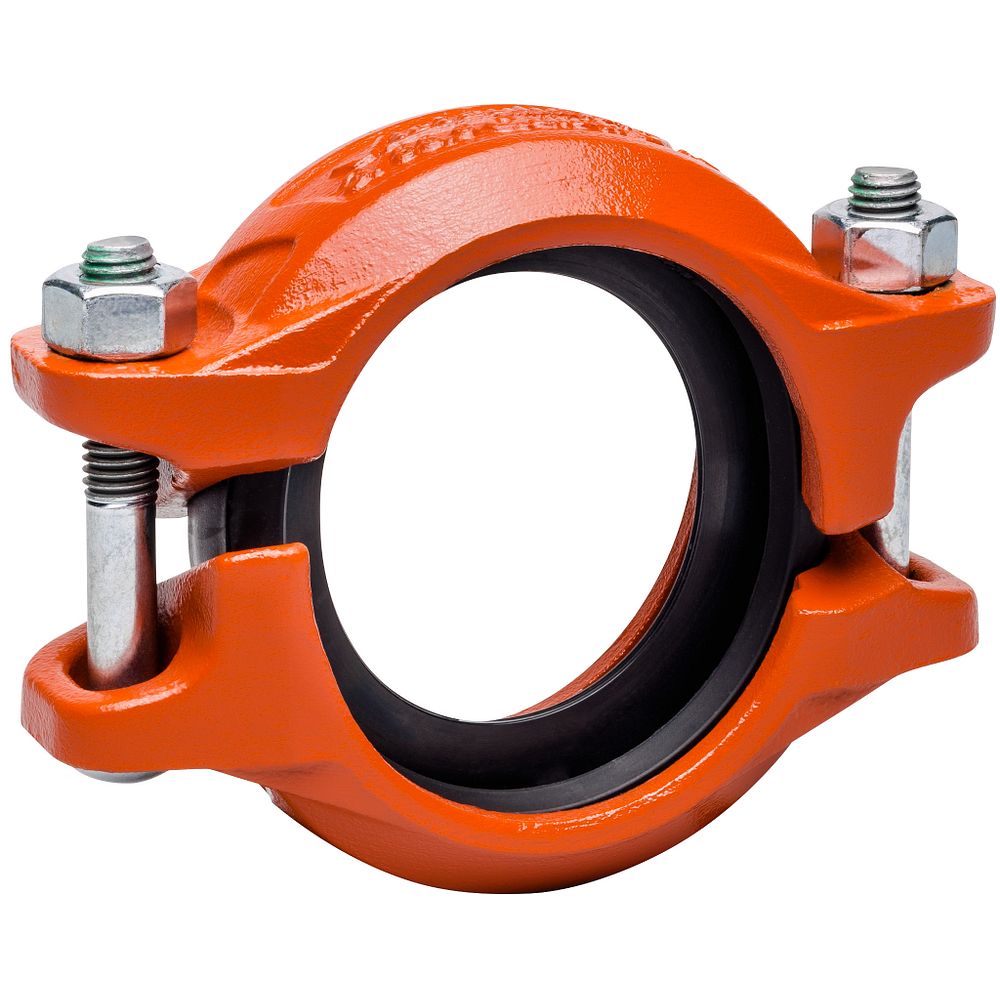

Style 107N Rigid Coupling
- Angled bolt pad provides rigidity
- Sizes from 2 – 12″ | DN50 – DN300
- Pressures up to 750 psi | 5171 kPa | 52 bar

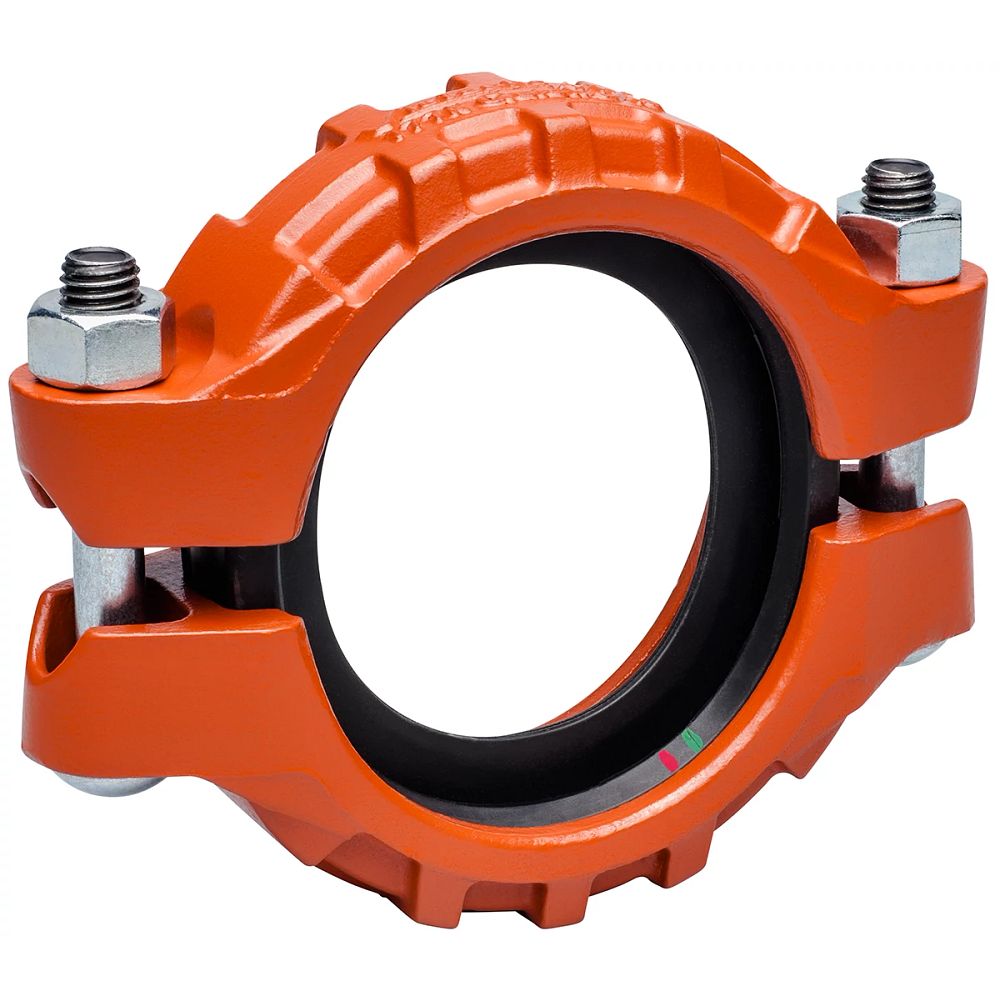

Style 177N Flexible Coupling
- Sizes from 2 – 8″ | DN50 – DN200
- Pressures up to 1000 psi | 6895 kPa | 69 bar
- Optional galvanized coating
.jpg)

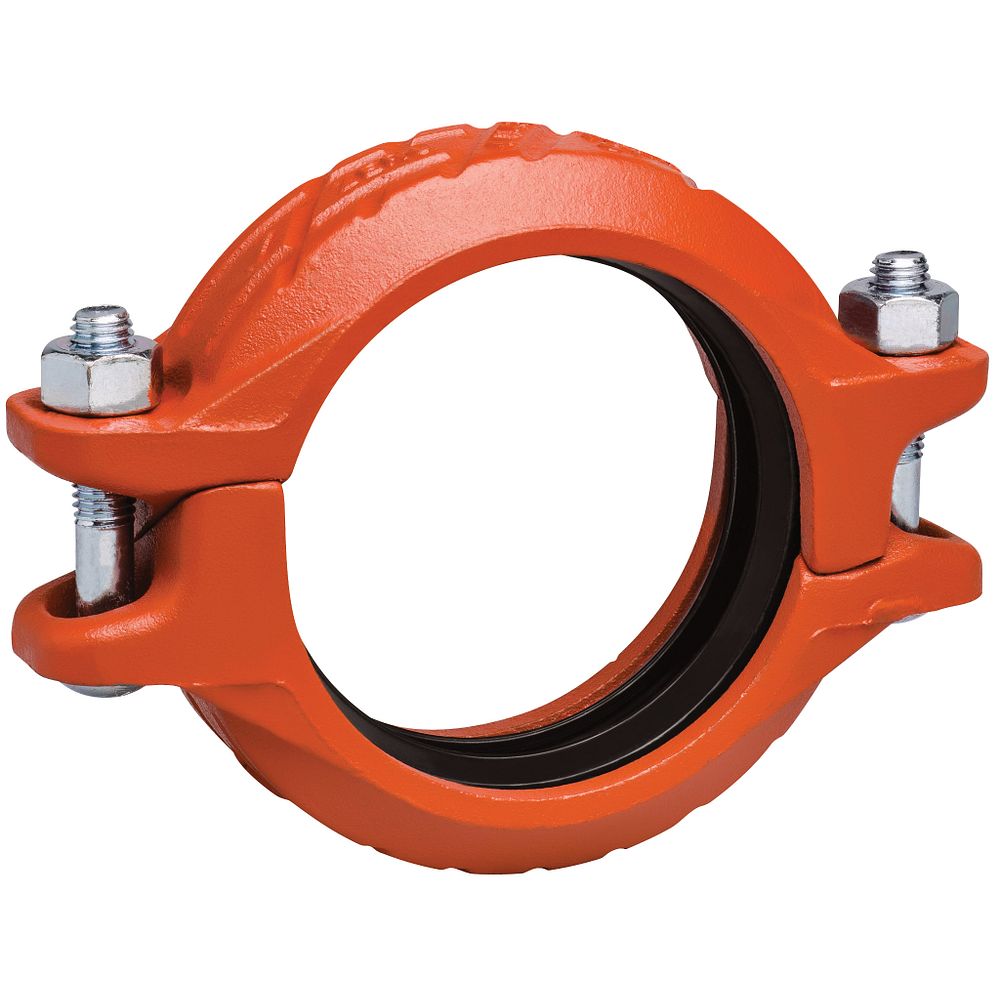

Style 07 Rigid Coupling
- Angled bolt pad provides rigidity
- Sizes from 1 – 12″ | DN25 – DN300
- Pressures up to 750 psi | 5171 kPa | 52 bar
.jpeg)

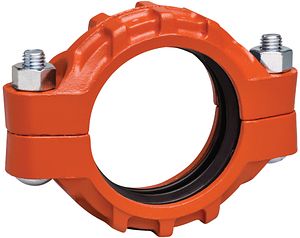

Style 77 Flexible Coupling
- Cross-ribbed, two piece housing construction
- Sizes from ¾ – 24″ | DN20 – DN600
- Pressures up to 1000 psi | 6895 kPa | 69 bar
.jpeg)

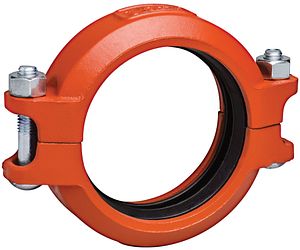

Style 75 Flexible Coupling
- Lightweight coupling for moderate pressures
- Sizes from 1 – 8″ | DN25 – DN200
- Pressures up to 500 psi | 3447 kPa | 34 bar
.jpeg)

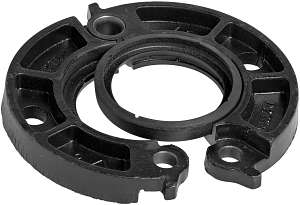

Style 741 Flange Adapter
- ANSI Class 125 and 150, Australian Standard Table E, PN10/16 and JIS 10K
- Sizes from 2 – 24″ | DN50 – DN600
- Pressures up to 300 psi | 2068 kPa | 21 bar

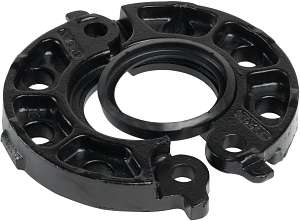

Styles 743 Vic-Flange Adapter
- ANSI Class 300 flanges
- Sizes from 2 – 12″ | 50 – 300 mm
- Pressures up to 720 psi | 4964 kPa | 50 bar
No. 20 Tee
- 3/4 – 24"/DN20 – DN600
- Carbon steel
- Pressure ratings for Victaulic standard fittings conform to the ratings of Victaulic Style 77 couplings
No. 30 45° Lateral
- Up to 1000 PSI, depending on size and material
- Hot-Dipped Galvanized Orange Enamel Painted
- Carbon Steel (ASTM A53) Ductile Iron (ASTM A536 Grade 65-45-12)
No. 35 Cross
- Up to 1000 PSI, depending on size and material
- Carbon Steel (ASTM A53) Ductile Iron (ASTM A536 Grade 65-45-12)
- Grooved ends compatible with Victaulic couplings
No. 50 - Concentric Reducer
- Ductile Iron, ASTM A536, Grade 65-45-12
- Large End: 2" to 12" (DN50 to DN300) Small End: 1¼" to one size below large
- -30°F to +230°F (-34°C to +110°C) depending on gasket type

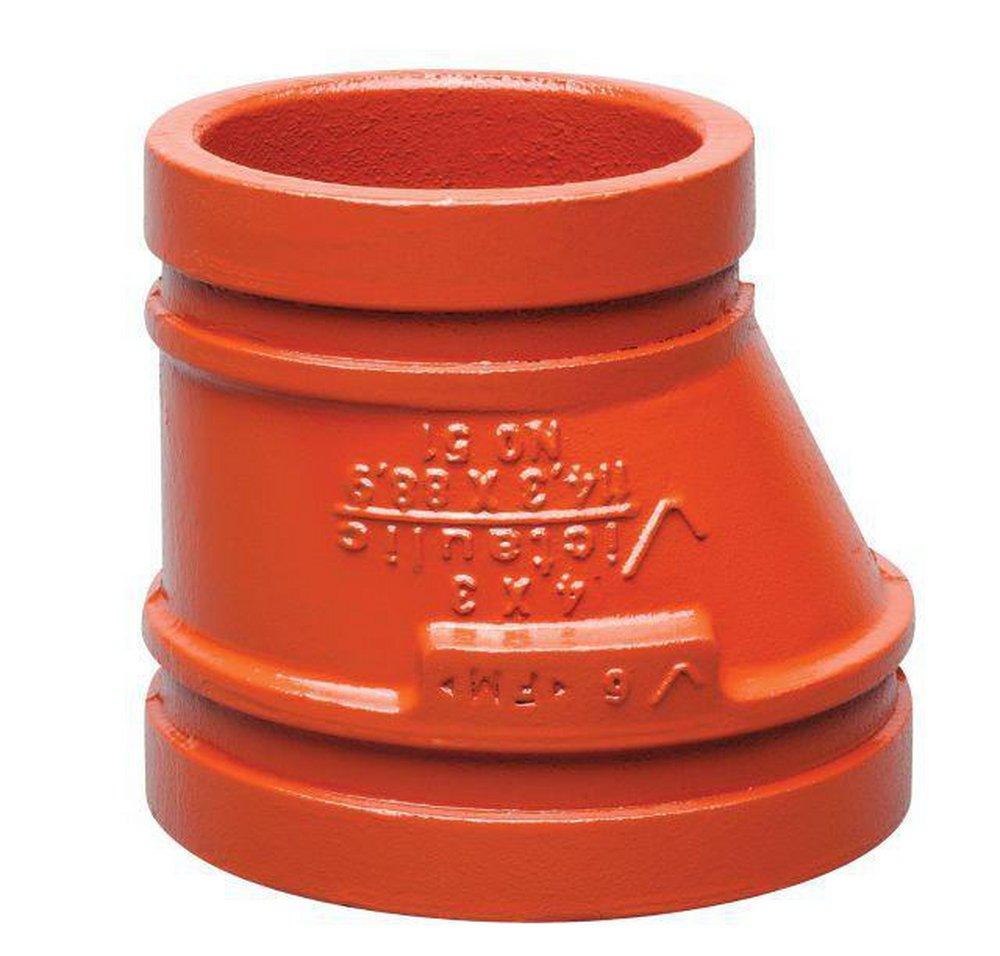

No. 51 - Eccentric Reducer
- Large and small end aligned on one side (flat bottom or top depending on flow)
- Standard: Orange enamel Optional: Galvanized or Epoxy coating
- Up to 500 psi / 34.5 bar (varies by size and coupling used)
No. 60 - Cap
- Ductile Iron conforming to ASTM A536, Grade 65-45-12
- Standard: Orange enamel Optional: Hot-dip galvanized or epoxy coated
- Up to 500 psi / 34.5 bar (varies by size and coupling)
No. 52 Small Threaded Reducer
- Up to 1000 PSI (dependent on coupling and pipe specifications)
- UL Listed FM Approved CTP Approved Conforms to Victaulic OGS groove profile
- Grooved End x Male National Pipe Thread (MNPT)
No. 41 ANSI Class 125 Flanged Adapter Nipple
- Conforms to the pressure rating of the installed coupling
- ¾″ to 24″ (DN20 to DN600)
- Constructed from robust materials to ensure longevity and reliability in piping systems.
