PRODUCT DESCRIPTION

Available Sizes

  • 1 ½ – 8"/DN40 – DN200

Application

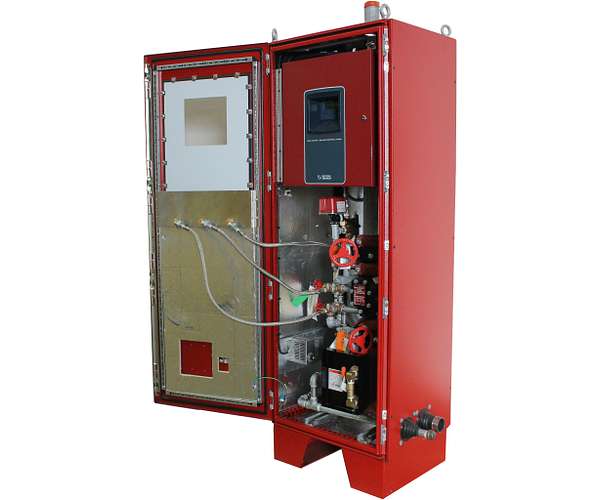

  • The Victaulic FireLock™ Series 745 Fire-Pac is a completely pre-assembled and tested fire protection valve with trim and optional components enclosed in a metal cabinet.
  • The FireLock™ Fire-Pac include a water supply shutoff valve, the sprinkler system fire protection valve, alarm line pressure switches, air supervisory pressure switches, a valve position supervisory switch, and pressure gauges that are easily viewed through a window in the cabinet door.
  • All electrical connections from inside the Fire-Pac to the control panel are pre-wired. Electrical connections are accessed inside the cabinet in a wiring panel box. Bulkhead fittings are factory provided for external hook-ups. All electrical component literature is included with the Fire-Pac cabinet.
  • The manual pull station, mounted on the front of the Fire-Pac cabinet, is accessible through a sealed door. Once the door to the manual pull station is opened, the valve can be manually tripped.
  • The pipe feed and drain connections can be located on either the left side, right side, or bottom of the enclosure. For ease of maintenance, the side and back panels of the cabinet can be removed for easy access to service equipment.
  • Use with Victaulic FireLock™ grooved pipe couplings and fittings.
